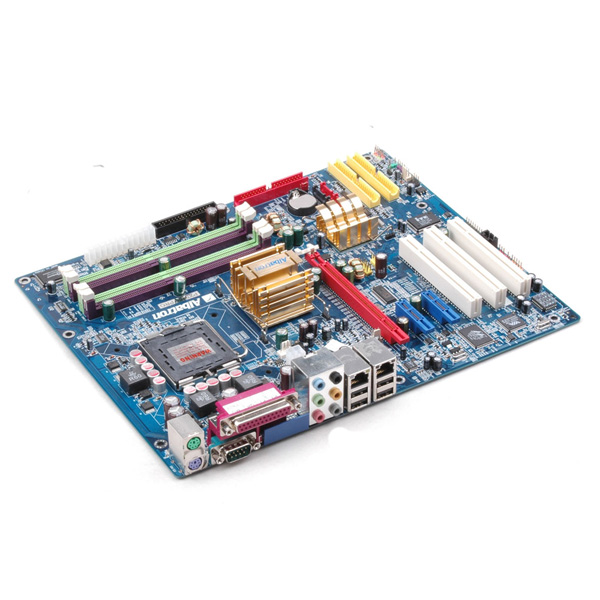

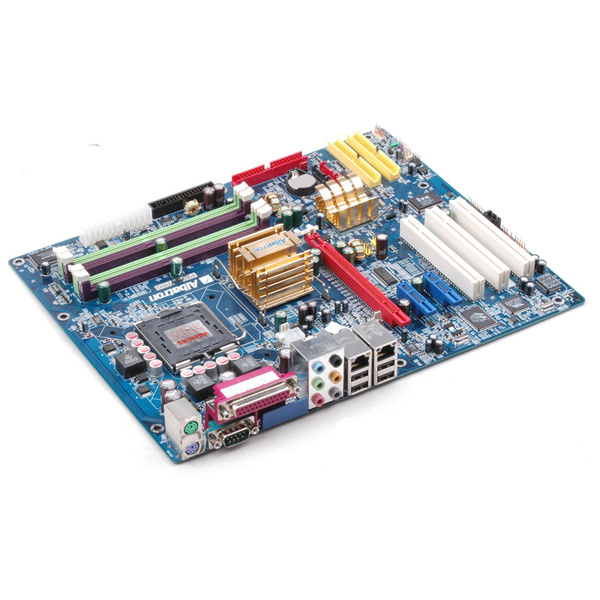

Motherboard 915

Motherboard 915

CPU	LGA478, supports Intel® Pentium® / Intel® Celeron® CPU
Chipset	Intel® 915GM speed chipset
Memory	2xDDR1 DIMM, maximum capacity to 4G
	Dual channel
	800/667/533MHz
Display Functions	1xVGA
Video	Realtek ALC662,
	supports High Definition
	supports Audio 2/4/5.1 sound channel
Lan	Realtek RTL81XX(10/100 Mbit)

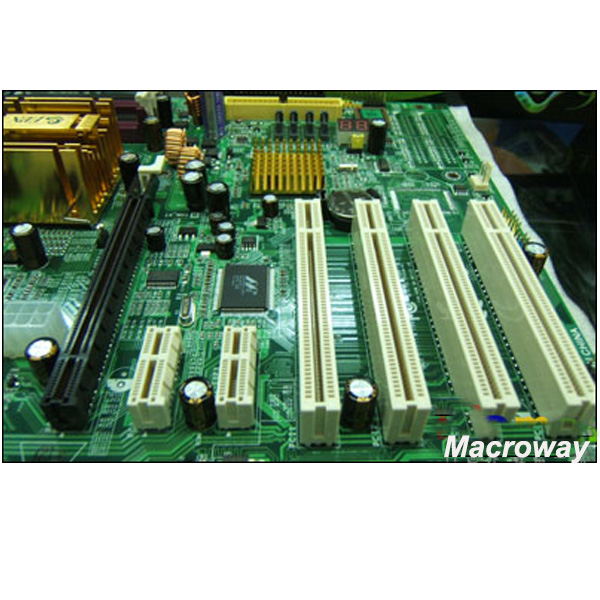

PCI slots	1xPCI Expressx16 (supports PCI Express 3.0 with the Intel 22nm series CPU)
	1xPCI Express (supports PCI Express 2.0)
	1xIDE slot
Sorage	2xSATA 3Gb/s
USB	4xUSB2.0/1.1
Internal slots	2xSATA 3Gb/s
	1xCPU fan
	1x system fan
	1x control board slot
	1xsound source slot
	2xUSB2.0/1.1(for 4 USB slots)
	1xCOM(RS232)
Back slots	1xPS/2 keyboard slot
	1xPS/2 mouse slot
	1xVGA
	4xUSB 2.0/1.1 ports
	2xRJ-45 ports
	3 sound source connector
